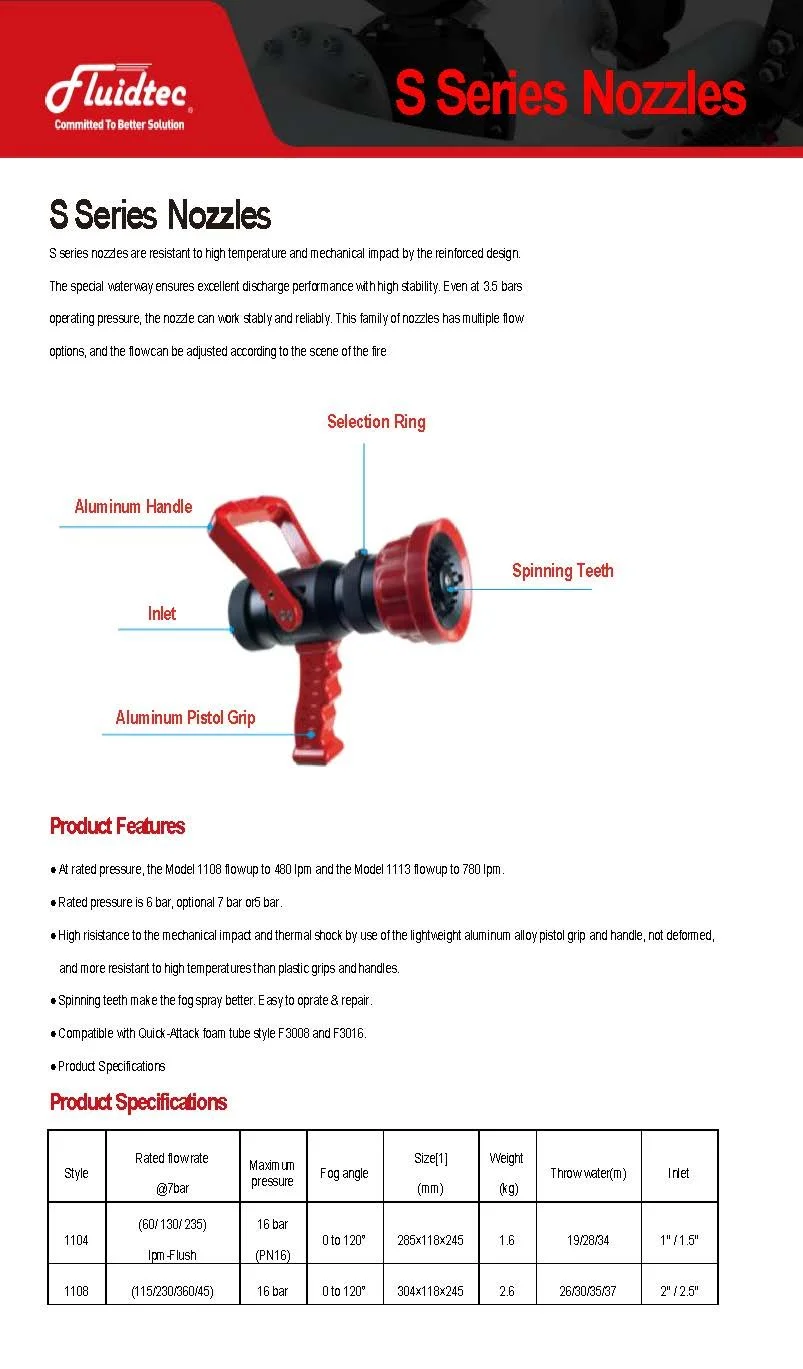

Our S Series Nozzle 1108 is a high-performance firefighting nozzle designed for industrial and emergency applications with adjustable flow rates of 115, 230, 360, and 475 L/min at a reference pressure of 6 bar, with a maximum operating pressure of 16 bar.

The nozzle offers a spray angle range from 0° to 120° and includes a swivelling BSP G 2" inlet.

With aluminium alloy material handle weighing just 2.33 kg - complies with DIN EN 15182 standards.

Unit price $410.00 plus GST. Min order quantity 10 off. Delivery 6 weeks.

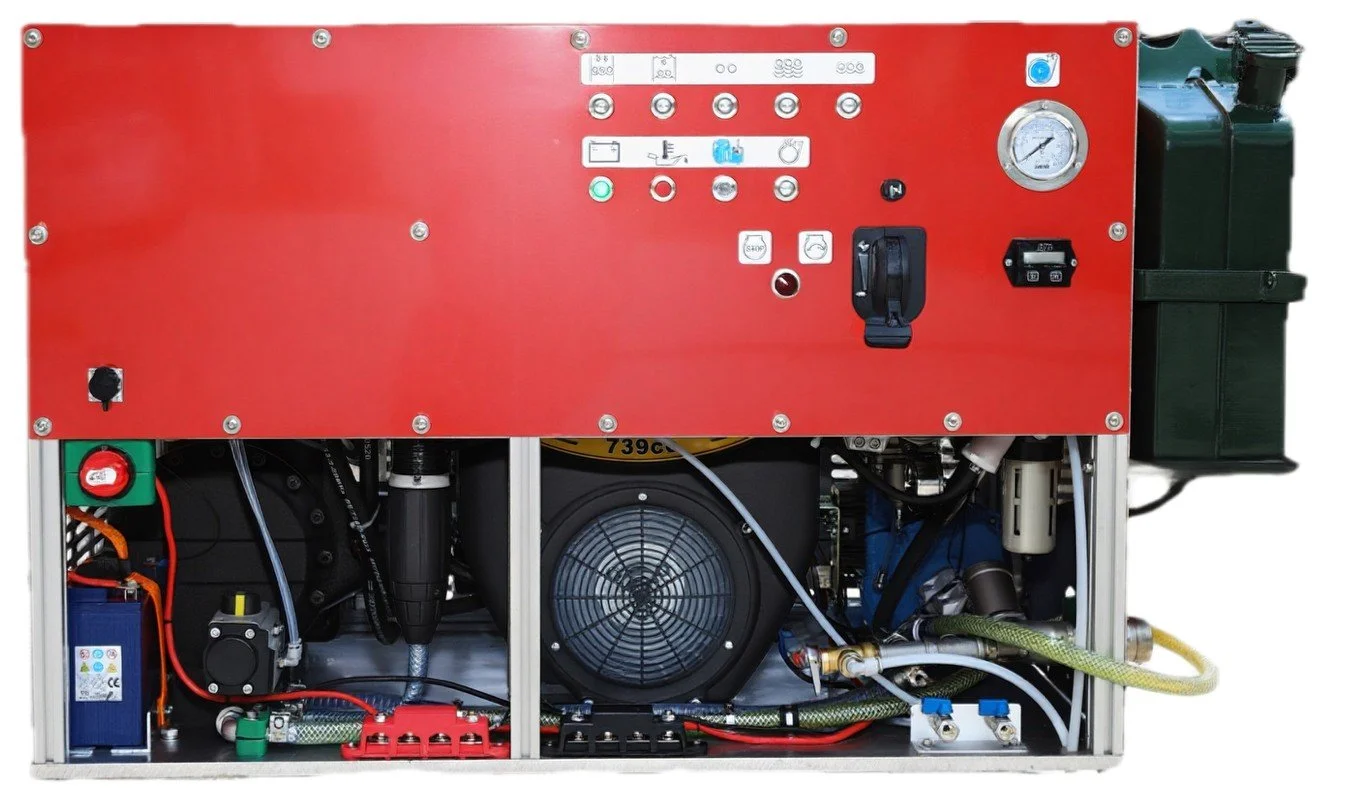

Our system is a self-contained compressed-air-foam system with a petrol engine, fire pump, air compressor, foam proportioner and foam generator.

It is lightweight, compact and pack power. It is ideal for installation on Utes, pick-ups trucks, trailers containers.

The system can deliver a flow of 910 litres of foam per minute, made from of 130 litres of water and 780 litres of compressed air.

Ready for any kind of firefighting operations including interior structural firefighting and bushfires.

ONE push button operation integrating the operation of fire pump, foam proportioner and CAF-System. The Fuel and electrical systems can be supplied from the vehicle chassis, or the unit is supplied with a 12v battery pack and 20l fuel tank.

Advantages.

- Self-contained system can be operated independent from anywhere.

- Powerful, full size fire suppression system for all kind of incidents.

- Universally applicable for all fire classes, highly efficient lithium-ion battery fires and EV fires. **

- Easy to operate “One Button Operation”.

- Foam can be supplied on long distances (up to 1 kilometre by a 2.5” hose) and heights of 100m.

Technical Data.

Engine

Type: 2 cyl, 4 stroke engine

Performance: 16.8 kW (23 hp) @ 3.600 rpm

Torque: 46 Nm @ 3.600 rpm

Speed Control: Electronic & Manual

Electrical System: 12V, 15A Alternator

Cooling: Air cooled

Fuel supply: External fuel tank, consumption 6l/h under full load

Fire Pump

Type and material: Seawater resistant aluminium single stage centrifugal pump

Performance: 330 l/min @ 8 bar pressure

Priming system: Pneumatic vacuum pump (-0,9 bar) automatic and manual

Drive: Belt driven

Compressor

Type. Rotorcomp EVO-02 NK Compact rotary screw compressor

Capacity: 780 l/min

Working pressure: 8 bar

Cooling System: External water/oil heat exchanger

Foam Proportioner

Type: Water driven positive pressure

Performance: 0.2 – 2.0% Proportioning. 1.0 – 5.0% optional

Working pressure: Max. 8 bar

Max. Viscosity: 3.000 cPS @ 20°C

System Overview

Weight: 205 kg

Dimensions: 1020 x 660 x 810 mm (LxWxH)

Foam Generator: 1x (1.5”) Fixed Flow Foam Generator with mixing-pressure control valve

Foam production: 910L/min Wet and 820L/min Dry

Water: 150l/min @ 8 bar

Inlets: 1x 1.5” suction inlet to fire pump 1x 16mm foam suction hose

1x 8mm Fuel supply line for the engine

1x 12V electrical connection to vehicle battery

Outlets: 1x 1.5” multipurpose for water, water foam solution or foam

1x additional 1.5” water outlet optionally available

1x additional compressed-air outlet optionally available

Warranties.

All components and electronics are fully supported in Australia.

Full Two-year parts warranty.

Training available with 24hr support line.

Price.

List price $70,850.00 plus GST. Delivery 12 weeks.

Compact, lightweight one-man firefighting solution.

An ideal tool for early intervention for forest patrols, estate security or standby support to extinguish fires at an early stage. The extinguishant tank is depressurised when stood down.

The air cylinder is easy to refill and quick to replace. A larger cylinder is available as an option that can also supply breathing air for firefighters.

Extinguishant tank and air cylinder are protected by a fire retardant lining. Pressure gauge is available in front of firefighter's chest for easy observation.

Pneumatic whistle gives low pressure warning when cylinder pressure is less than 50 bar.

Technical Data:

Weight (fully operational): 24kg

Extinguishing Agent Volume: 11L

Tank Material: Stainless Steel

Compressed Air Volume: 1.3L @ 300 bar

Working Pressure: 11 bar

Safety Relief Pressure: 16 bar

Wet/Dry Foam Switch: Yes

Wet Foam: 1:6

Dry Foam: 1:10

Constant Output Time: ≥30 seconds

Effective Throwing Distance: ≥13m

Warranties.

All components are fully supported in Australia.

All pressure vessels are certified in Australia.

Full Two-year parts warranty.

Training available with 24hr support line.

Price.

List price P.O.A plus GST. Delivery 12 weeks.
